The KIT INCLUDES:
LLC 5 Main Unit

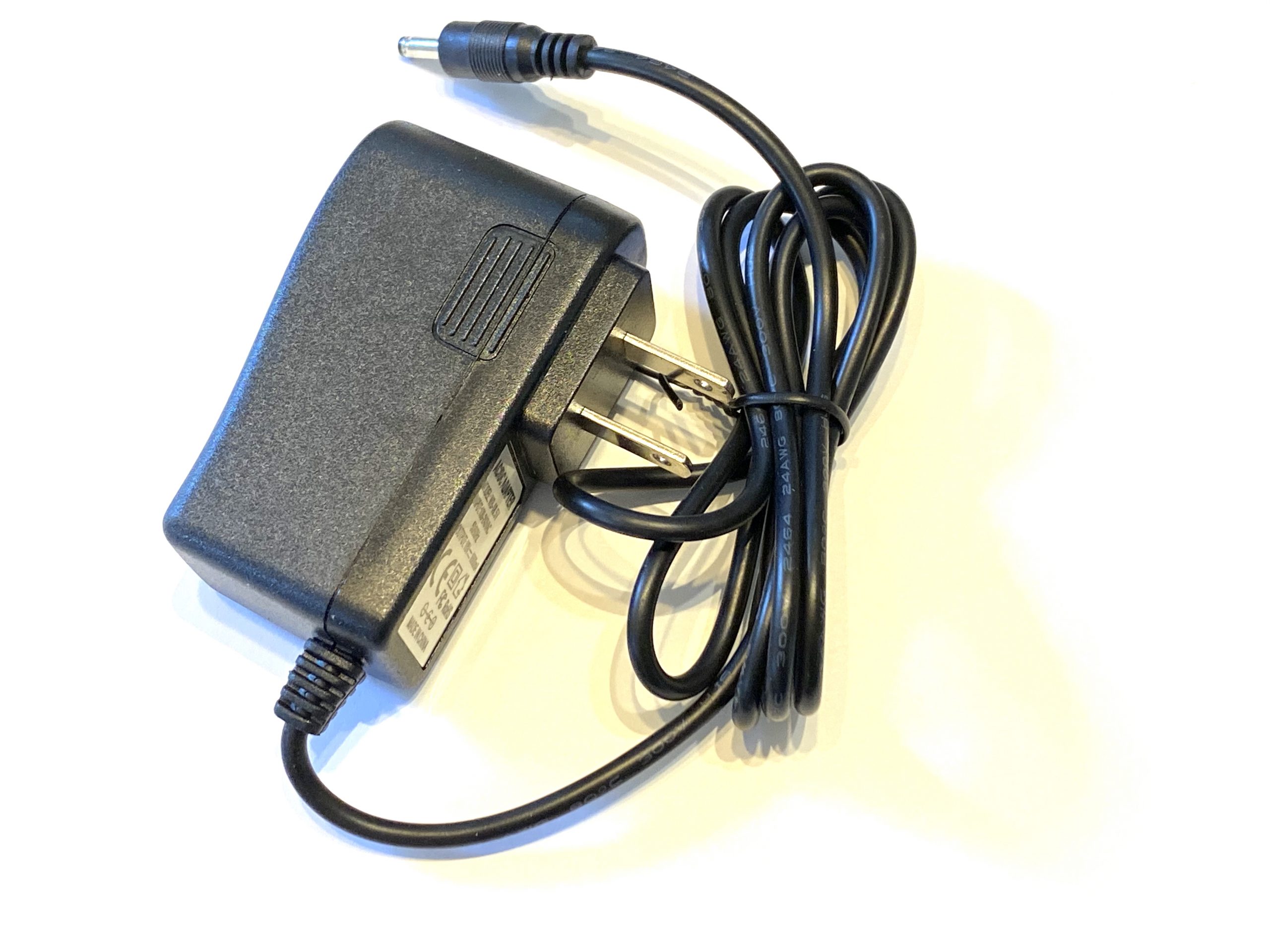

AC Adapter Power Supply. (1amp)

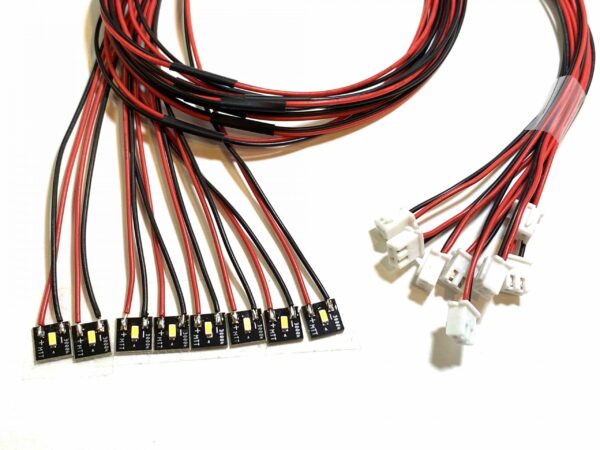

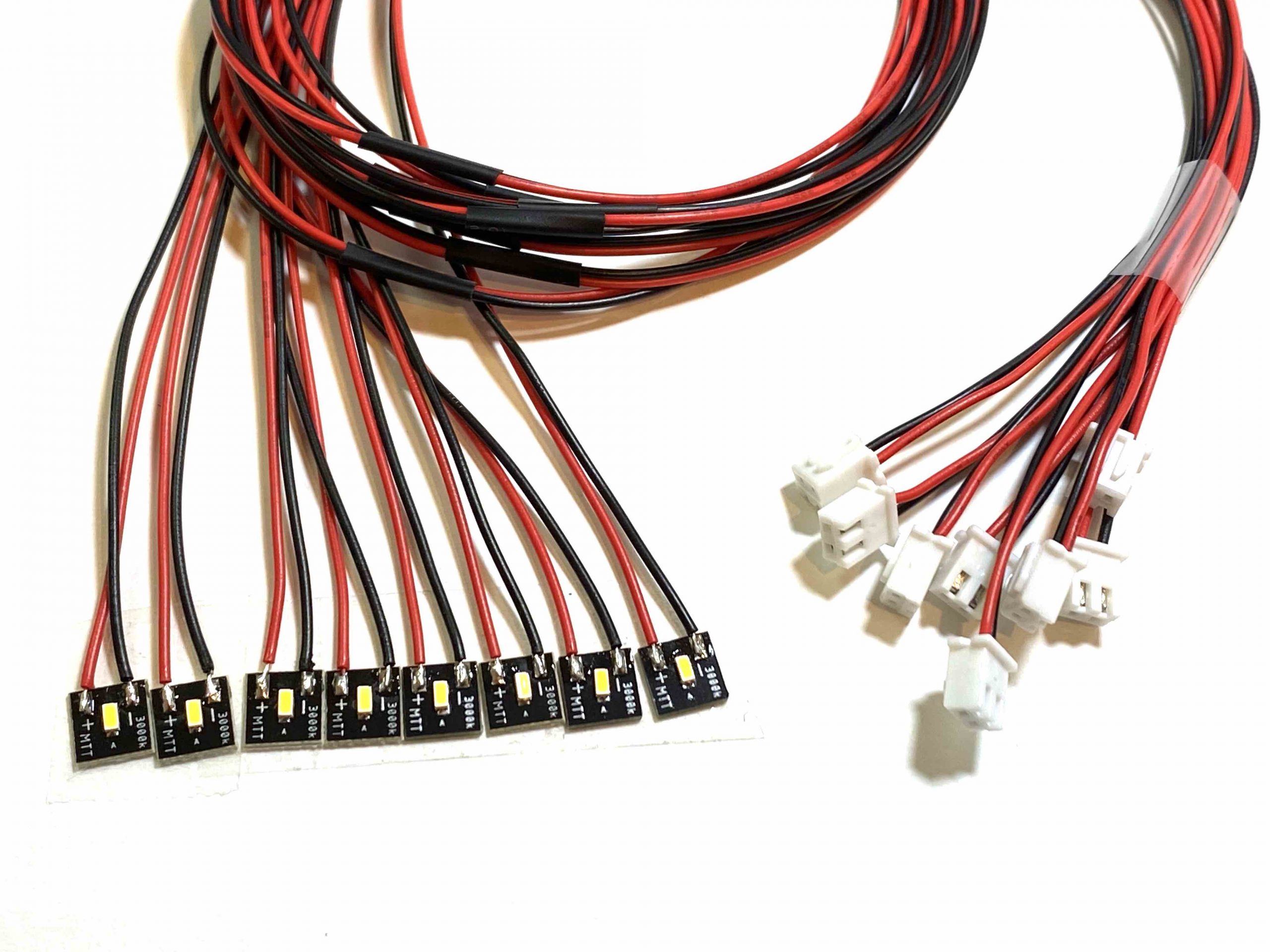

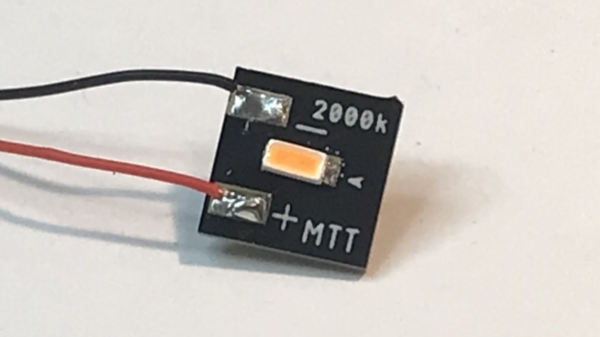

16 Prewired LEDs (single color of your choice) 24″ wire length
Additional items can be order:
- LED test boards
- JST to Terminal Boards
- Magnetic Mounting Bracket
INSTRUCTION MANUAL AND VIDEOS ARE HERE
16 Port LED controller can power and animate over 100 LEDs. Power, controller and Animate your LED lights that have JST-style plugs. Buy plug “pigtails” and connect your own LEDS, OR buy complete LED solutions with wire and simply plug them into this board. Uses 12-18V DC (included). The LSC III replaces over a dozen separate special effects boards costing over $175!
The LLC 5 can be configured and controlled via DCC but DCC is NOT required to run the LSC 5.
Each LED can be individual adjusted for brightness.
Works with 3.3V AND 12V LEDs simultaneously. No additional resistors are required since they are built into the unit.
A MAGNETIC MOUNTING BRACKET IS AVAILABLE and is included as the default at checkout.
Be up and running in 30 seconds! That’s it.
TWO DISPLAY CHOICES (Blue and White)

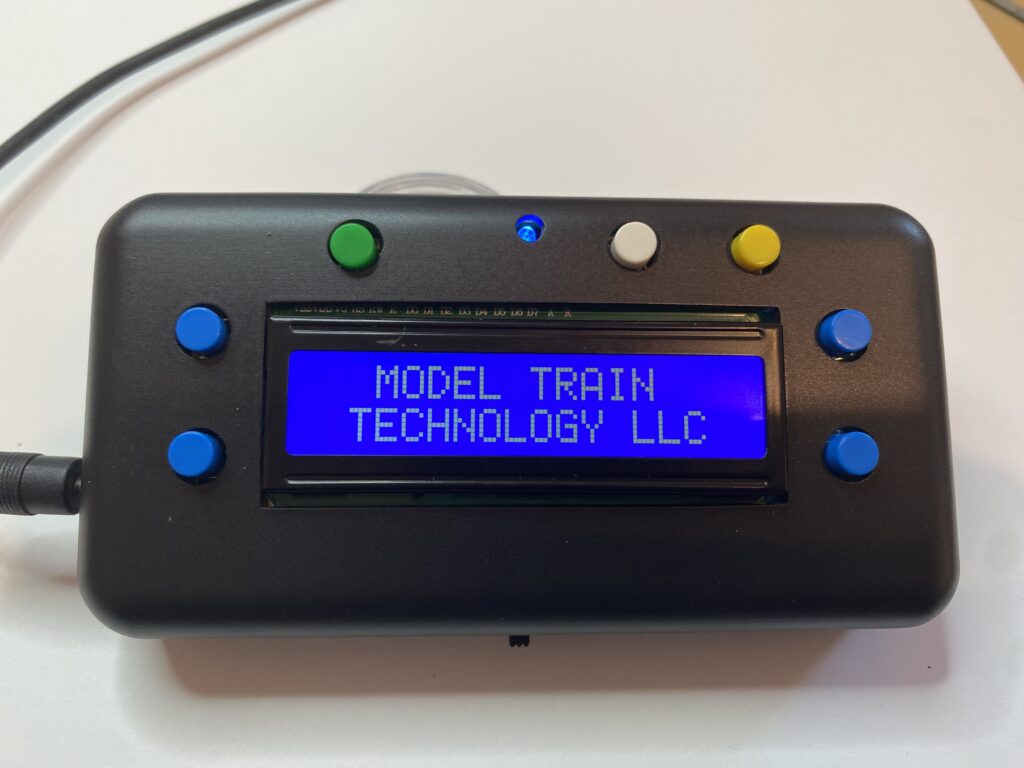

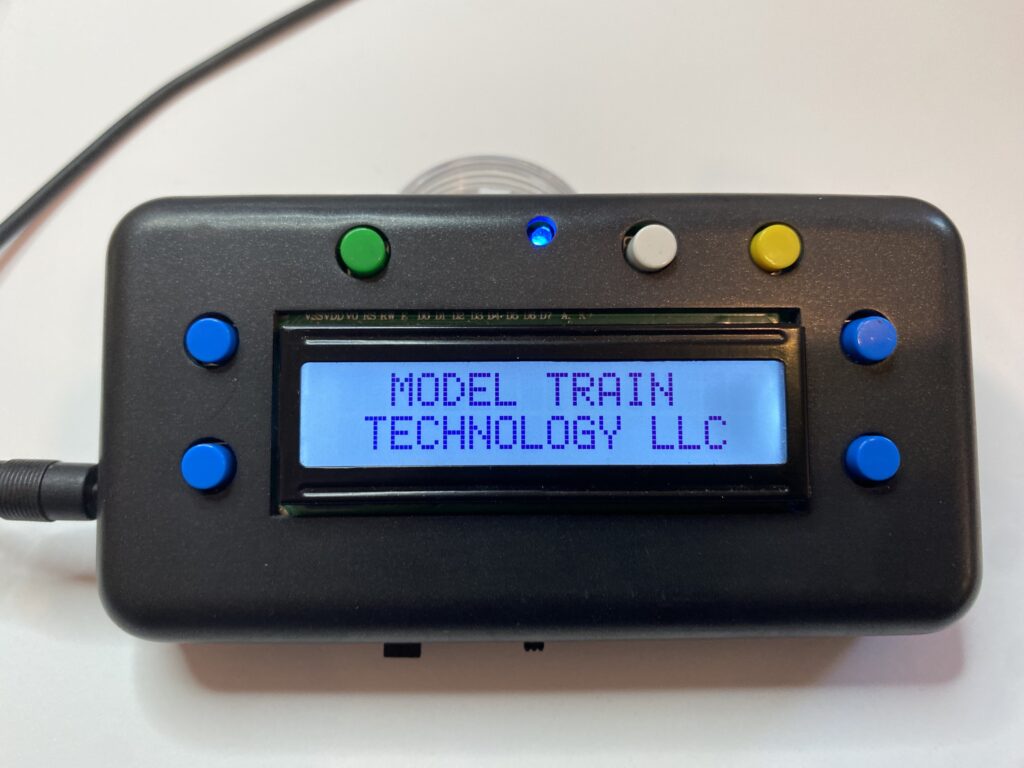

BLUE BACKGROUND DISPLAY/WHITE LETTERS:

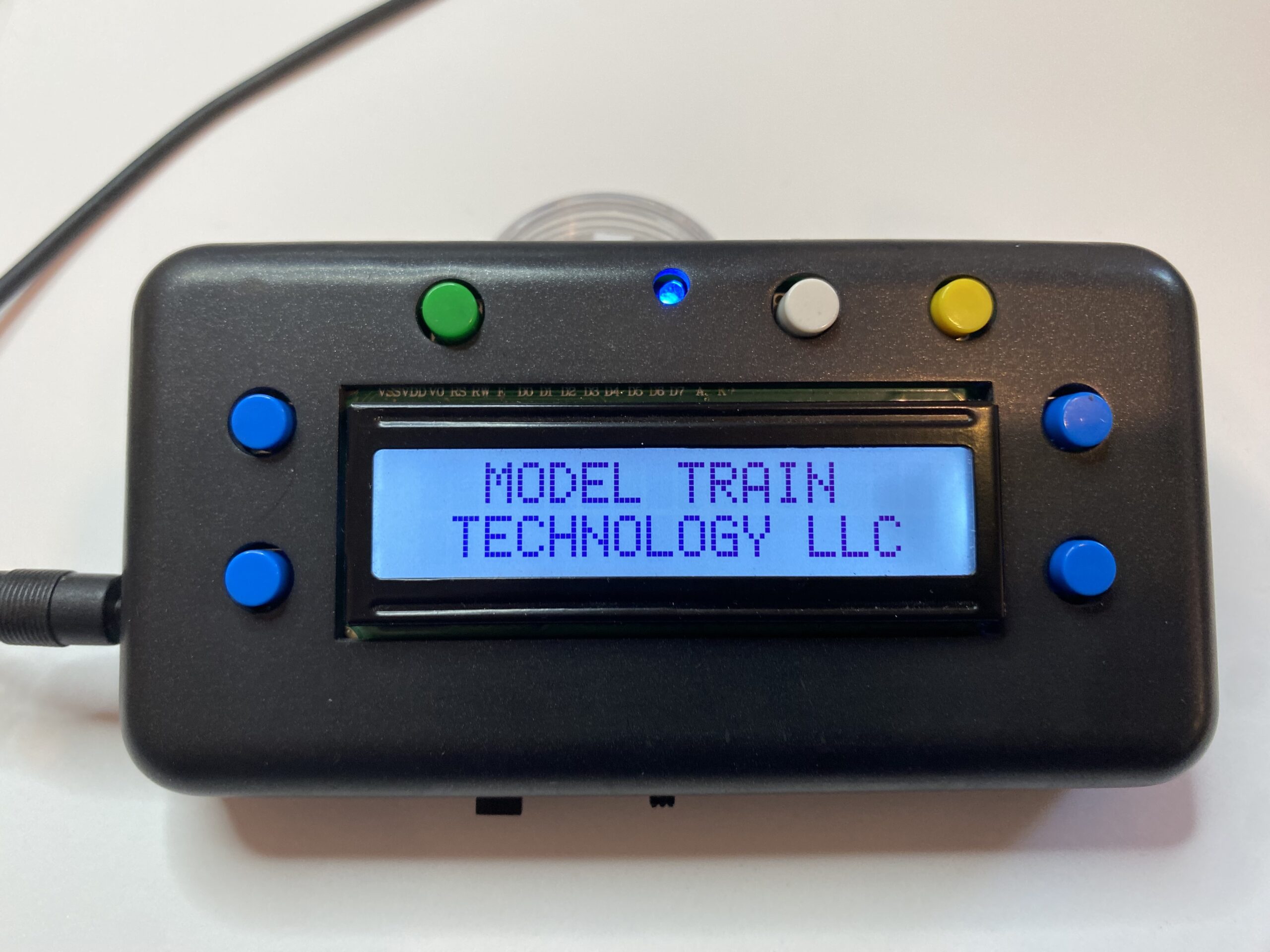

WHITE BACKGROUND/BLUE LETTERS DISPLAY:

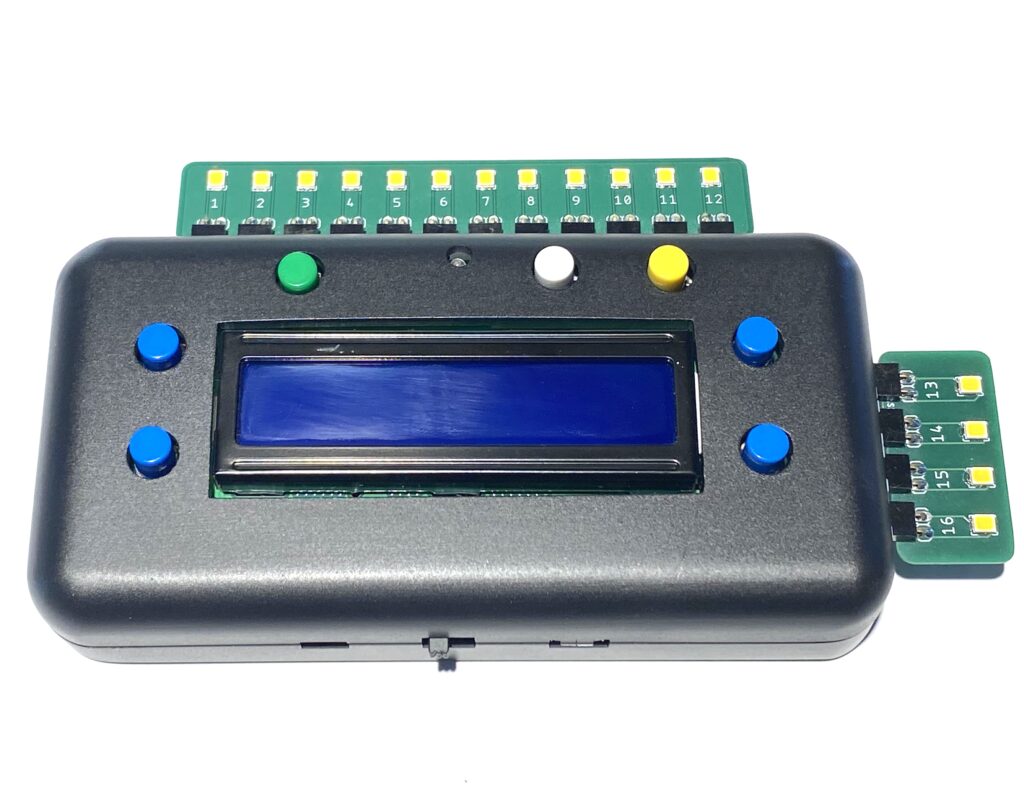

SUGGESTED ADD ON: LED Test Boards

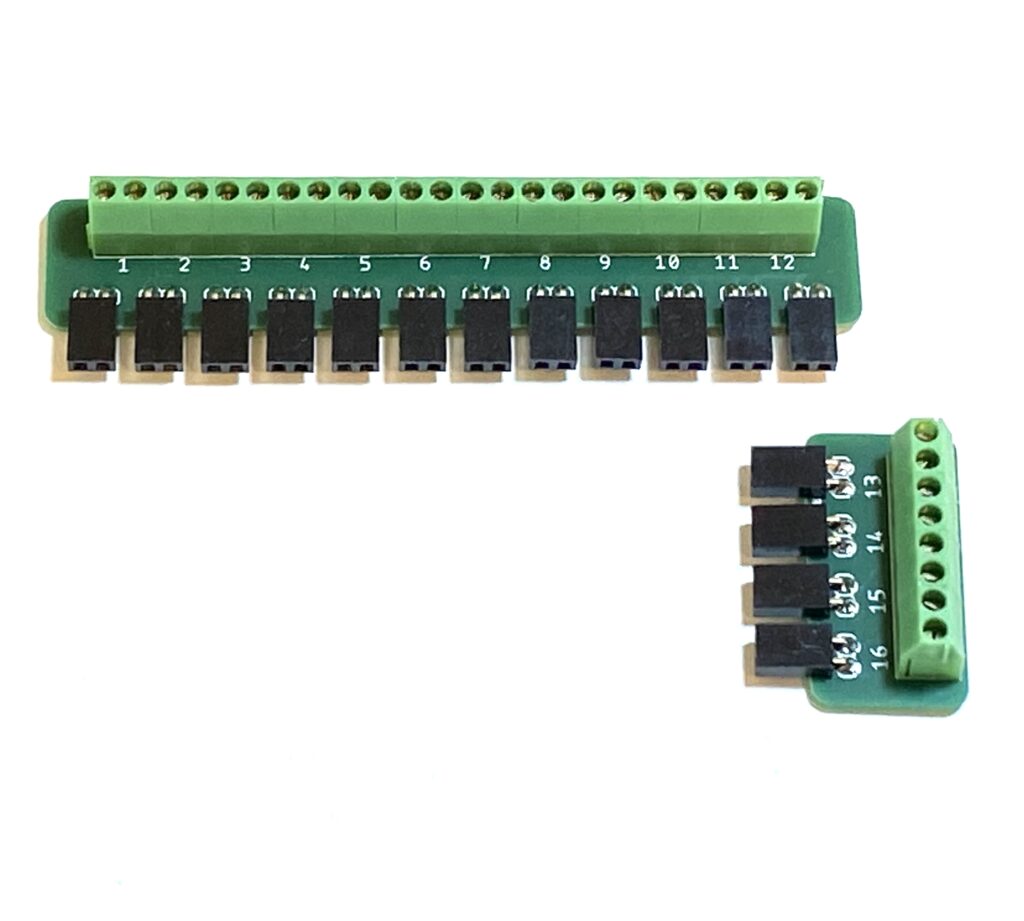

SUGGESTED ADD ON: JST to Screw Terminal Block

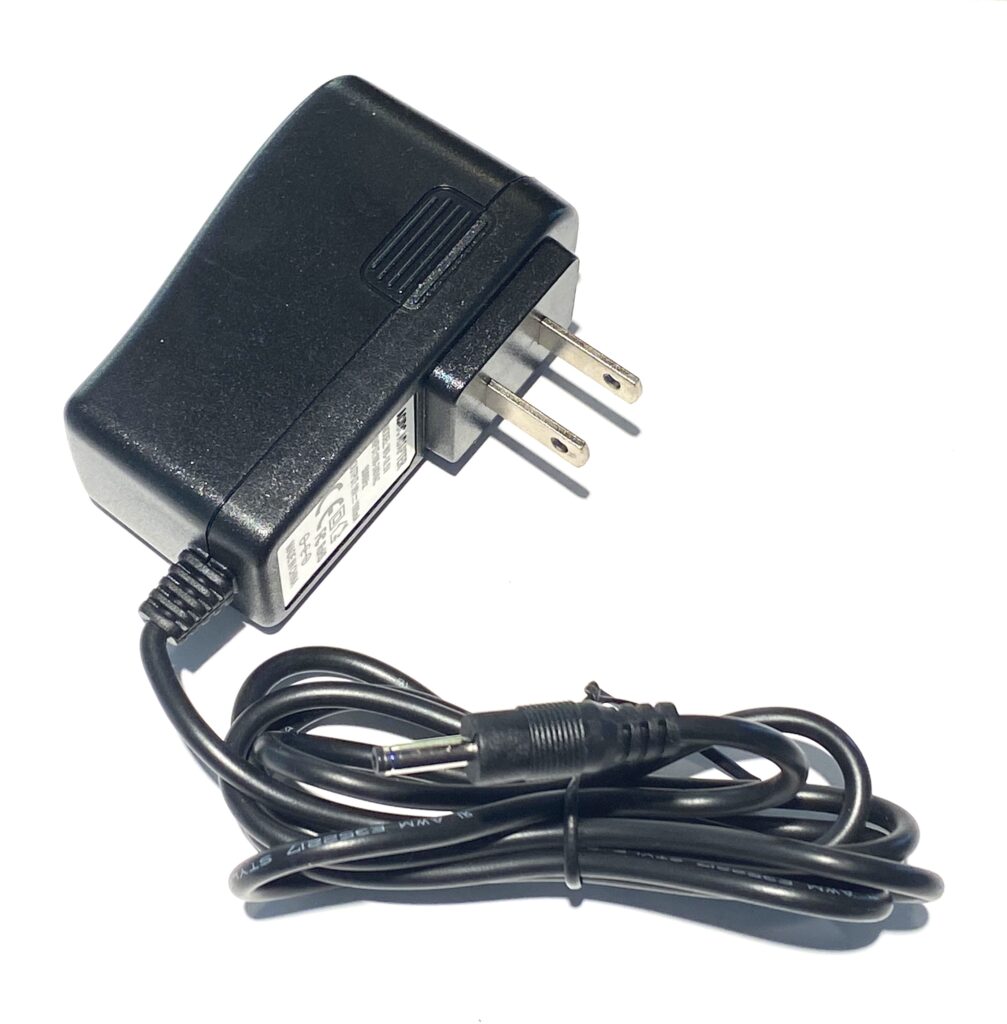

AC Adapter Included (110–240V – 1 Amp)
Magnetic Mounting Bracket
| Weight | 16 oz |
|---|---|
| LED Color | 2000K White (Yellowish), 3000K White (Standard White), 5000K White (Florescent), 6500K White (Bright White) |
| Display Color | Blue, White |
| Magnetic Bracket | Include Bracket, No Bracket |
Special Effects for any LED pin:
- Flicker
- Blink
- Beacon
- Fade
- Random (1 pin or all)
- Chase (back and forth with any number of LEDs
- Race (light Airport landing lights)
- Flashing (any alternate adjacent pins)
- TV Simulation (BW or COLOR)
- Welding
- Lighting
