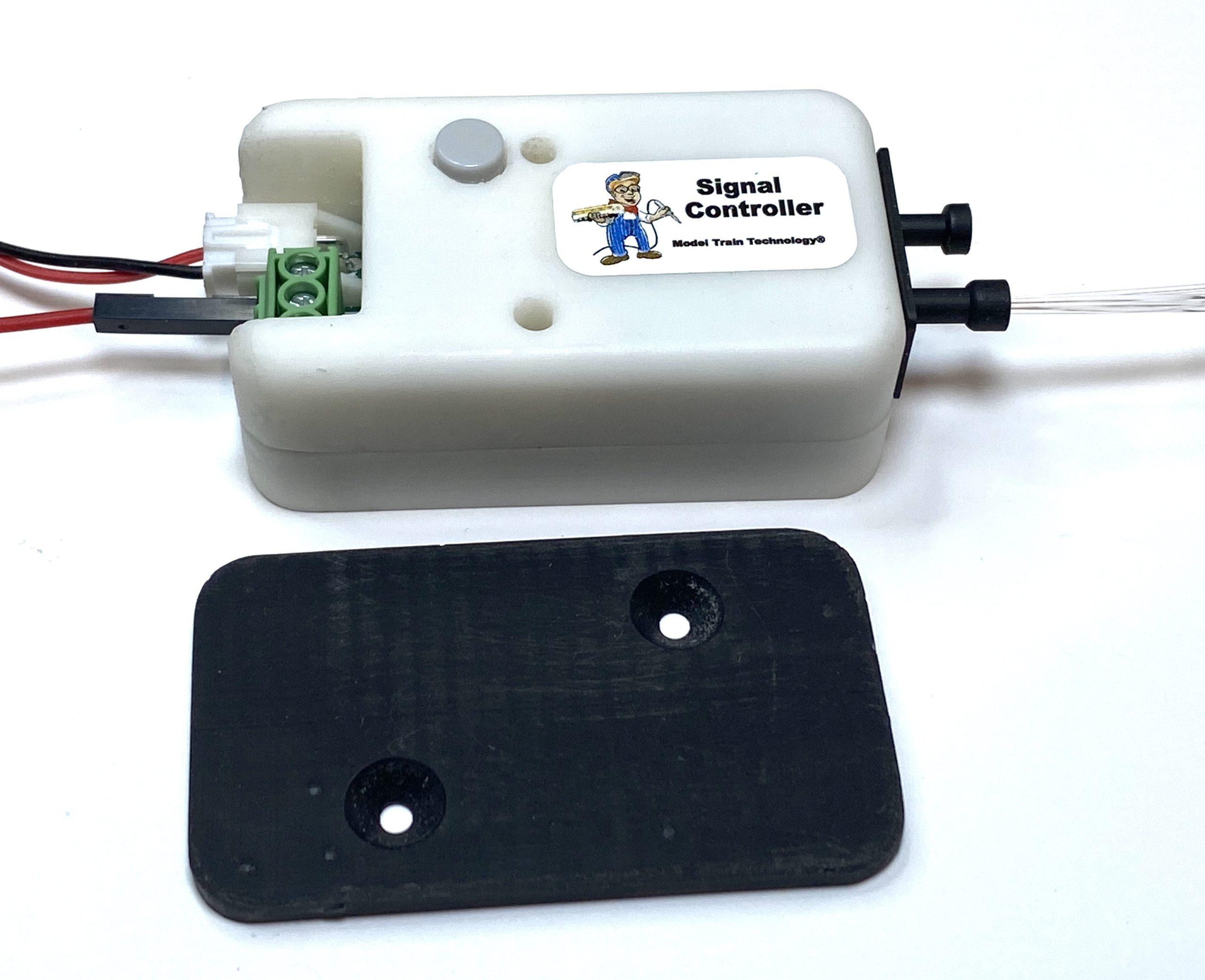

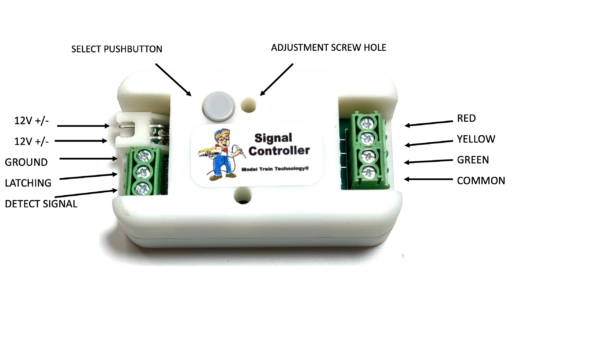

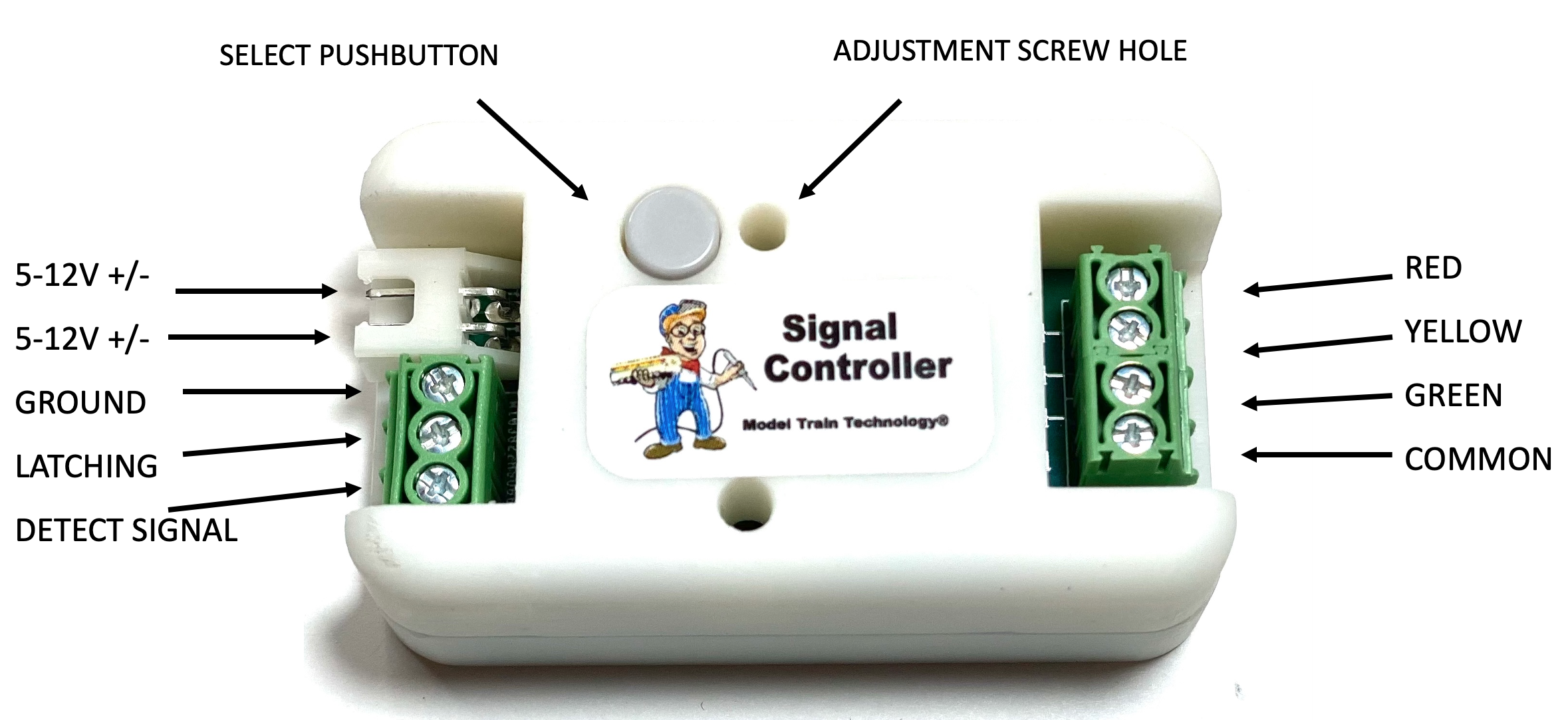

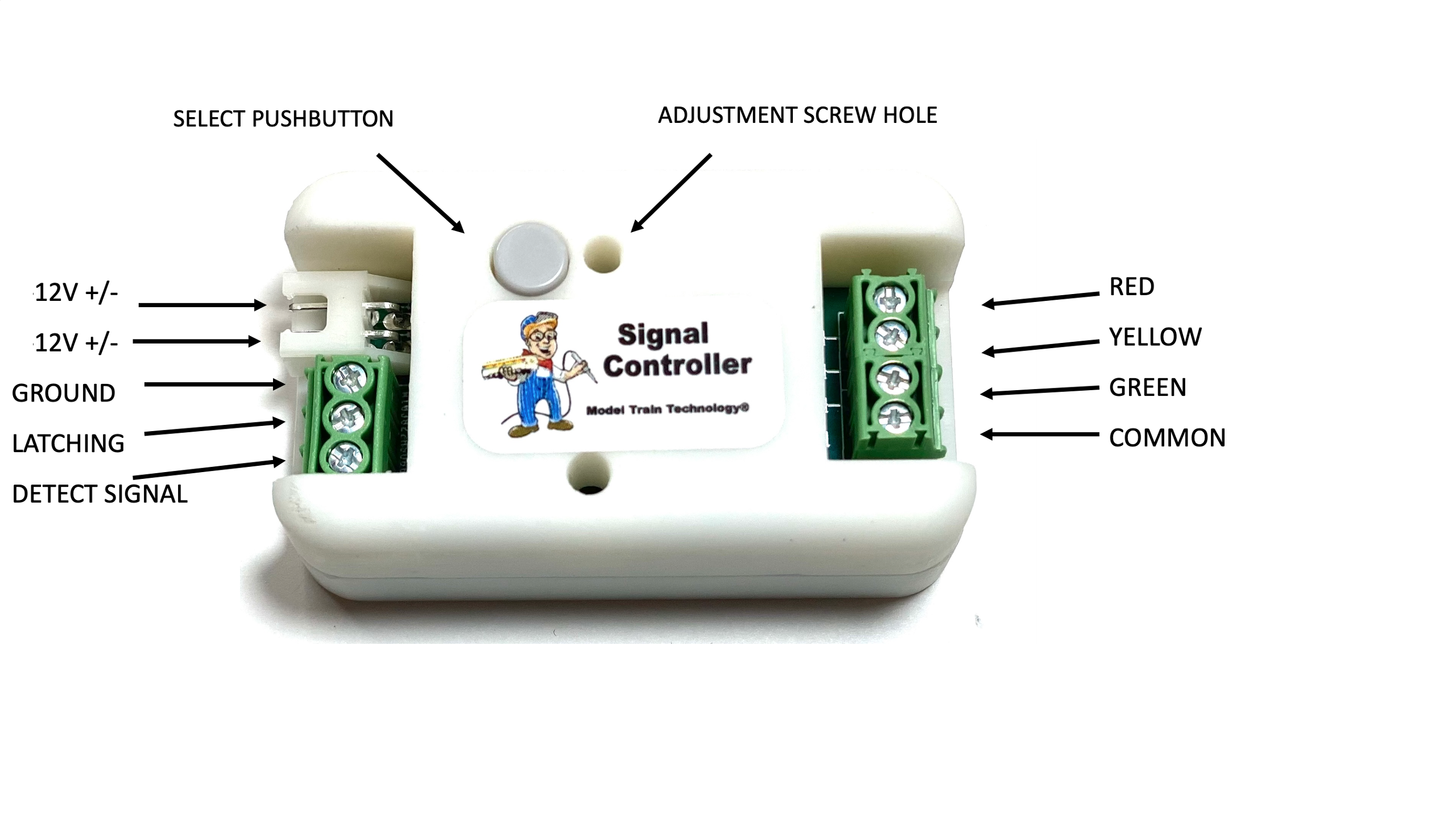

Block Signal Controller (Single)(LED)
SEE THE VIDEO DEMONSTRATION (CLICK THIS LINK)
-
All Signal Controllers now have the ability to swap polarity to common Plus or Minus. (Anode and Cathode support)
-
All Signal Controllers can/should be powered by 12vDC. If you plug in 12VDC, the output to the LEDs by default will be up to 11VDC but you can change that to 5V.
-
If you have a 12VDC power bus (such as common on T-Track sections for example) you can down shift the 12v INPUT to an OUTPUT of 5VDC in order to operate and protect 3V LEDs. Built in resistors and using a PWM protects LEDS – even ones rated to 1.8v
Signal Controller Manual v1.6a
Kevin Paige –
I recently purchased 3 signal block controllers and 3 precision detectors for my ho scale layout. I paired them up with three LED three aspect signal lights I purchased from another vendor in China. I just want to say what a great product you have; it worked first time straight out of the box. So easy to program and set up. Manual was very clear and watching your videos ahead of time was very helpful. Worked so well, I am going to add more to my layout to have latched block signaling on my mainline through out.
